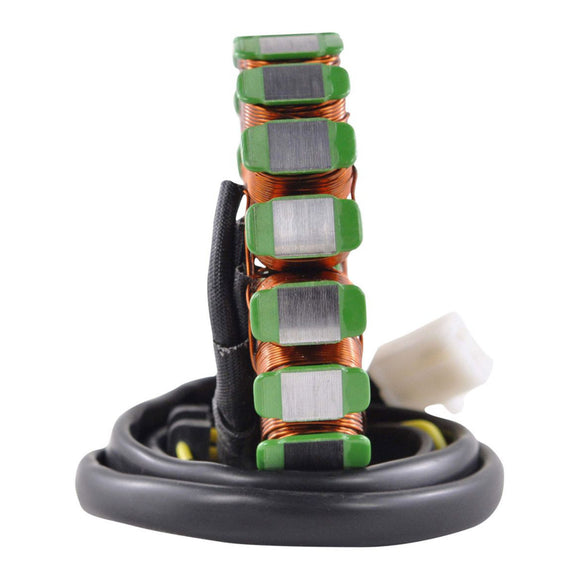

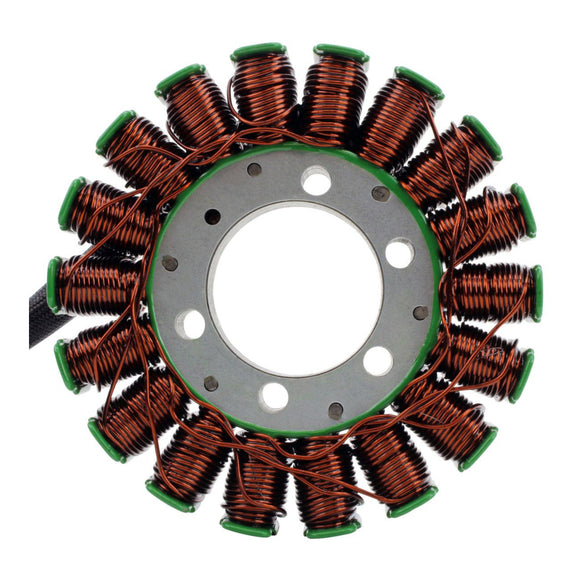

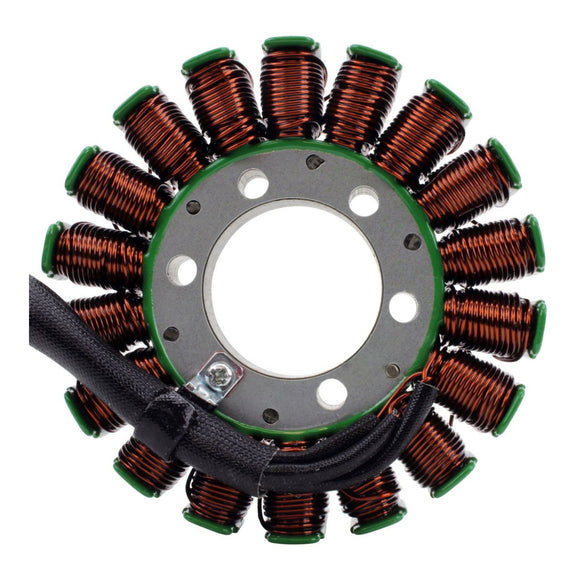

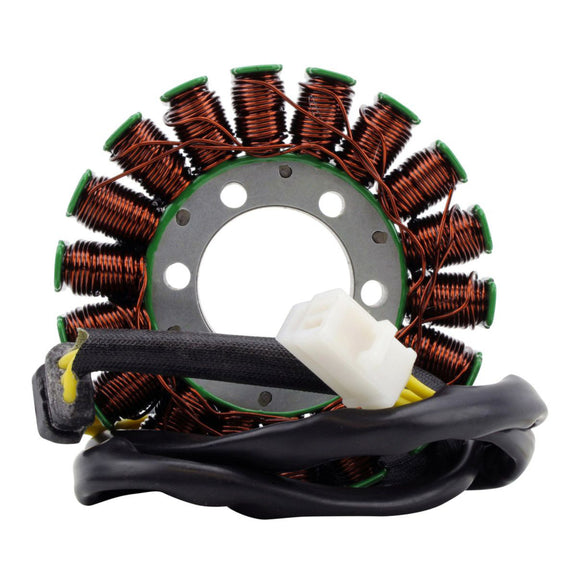

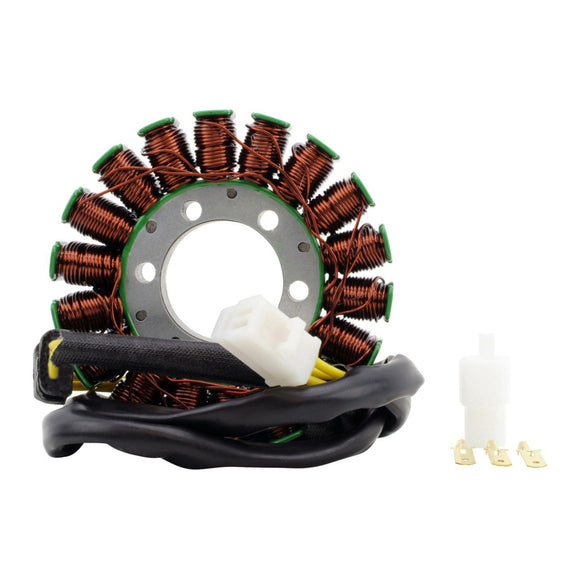

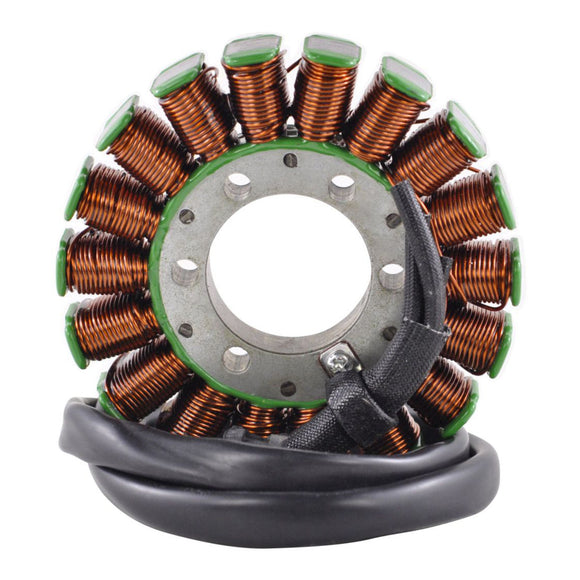

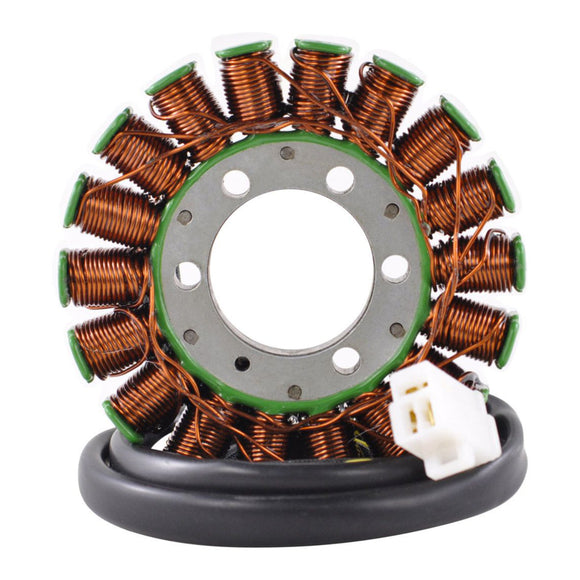

Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials

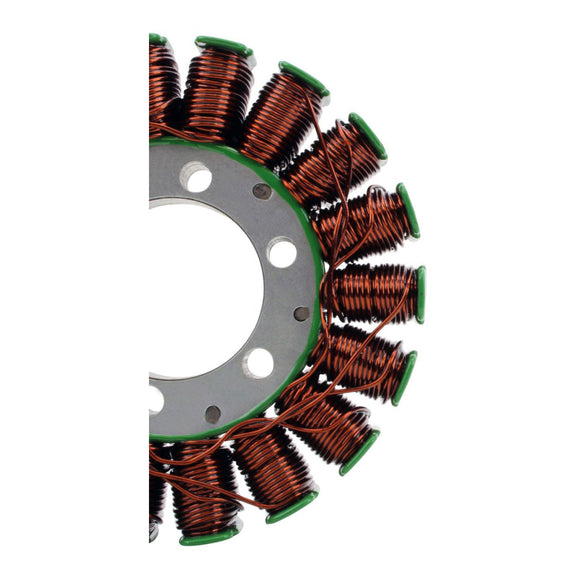

- Highest grade copper windings, resistant to 200 degrees Celsius.

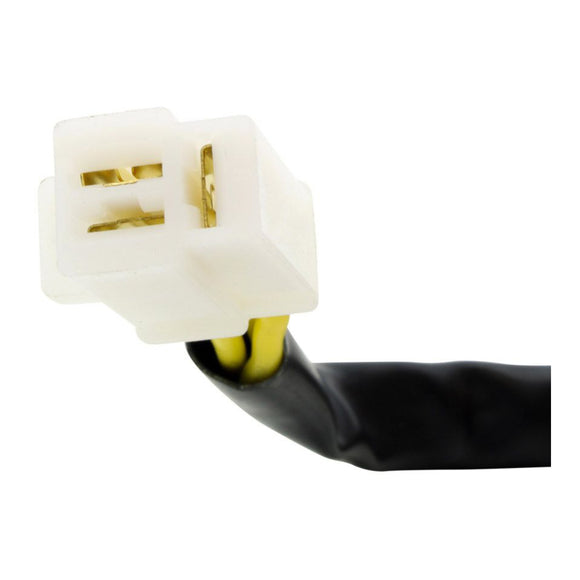

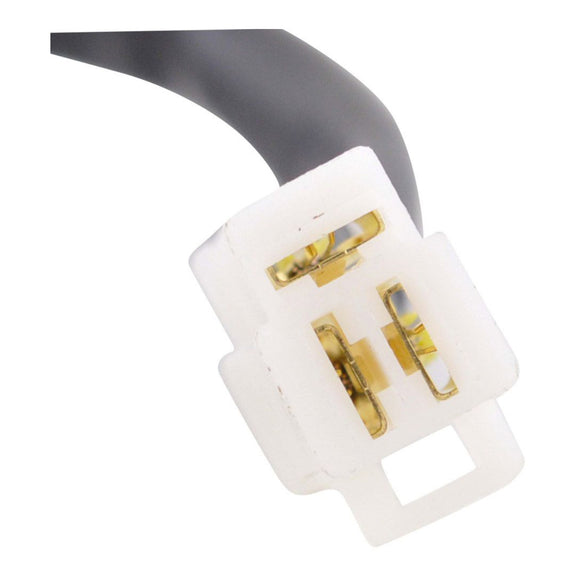

- Connector included
- Rubber grommet included
- All products shipped are tested

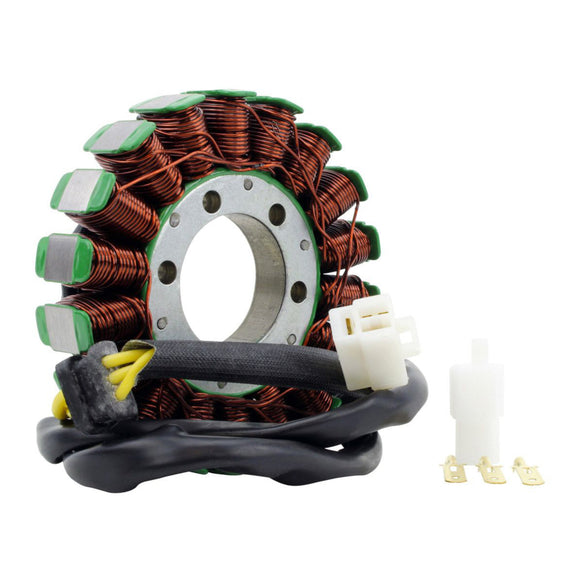

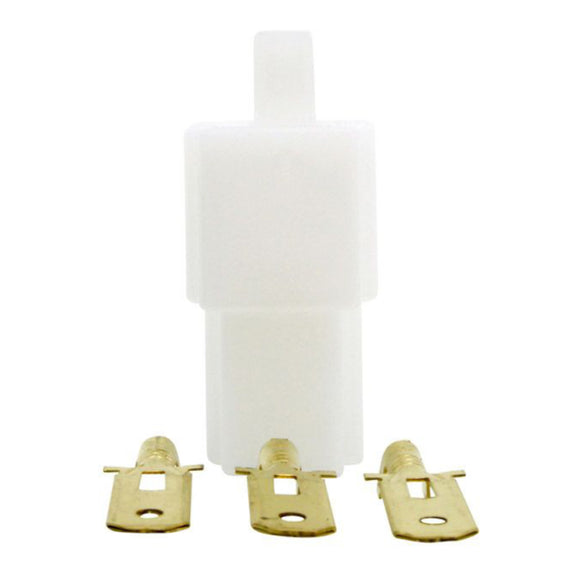

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Specifications:
Dimensions:
- Interior diameter: 38 mm
- Exterior diameter: 107 mm
- Thickness: 15 mm
- Length of wires stator to grommet: 180 mm
- Length of wires grommet to plug: 780 mm
Other specifications:
- Number of wires: 3
- Number of plugs: 1
- Number of pins: 3
Wire to wire resistance:
- Alternator : Yellow to Yellow = 0.4 ohms +-20%
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
