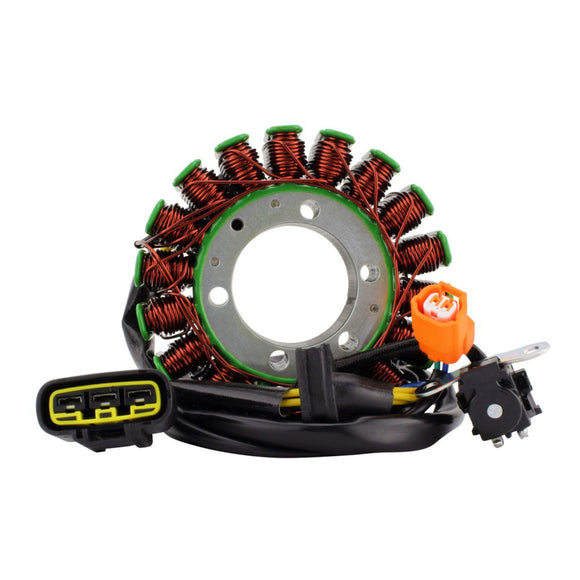

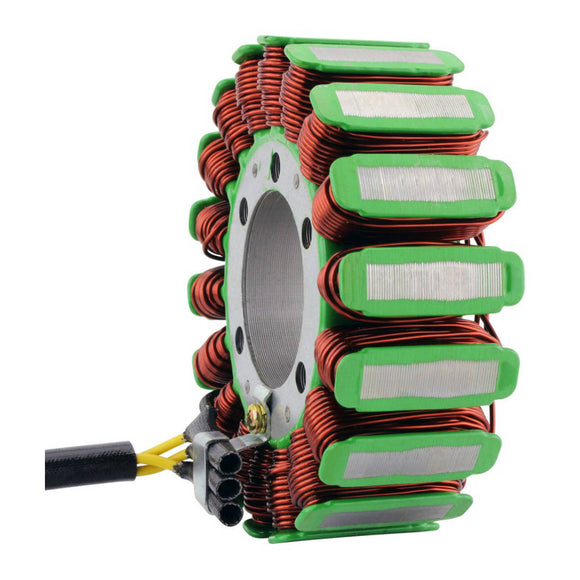

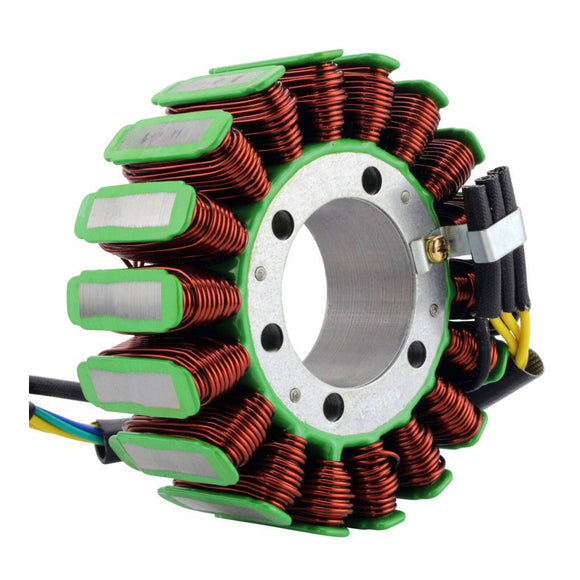

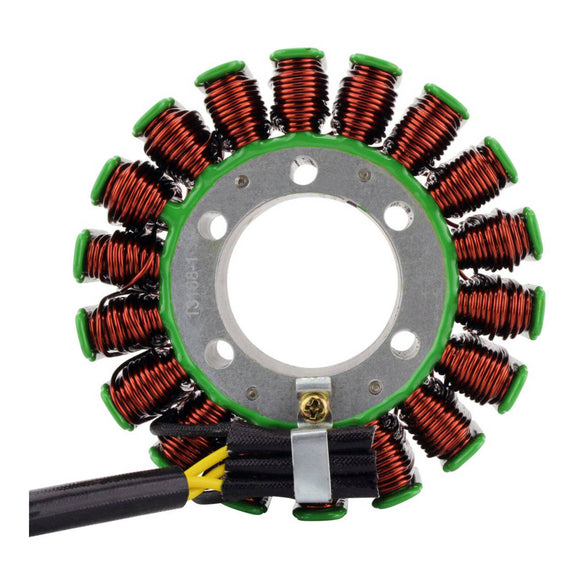

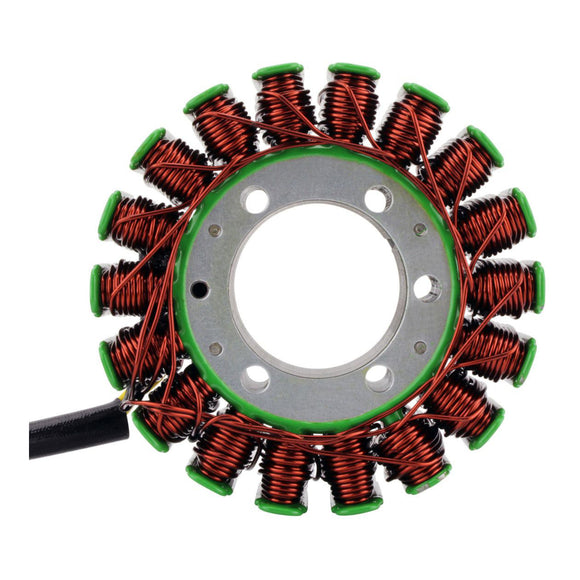

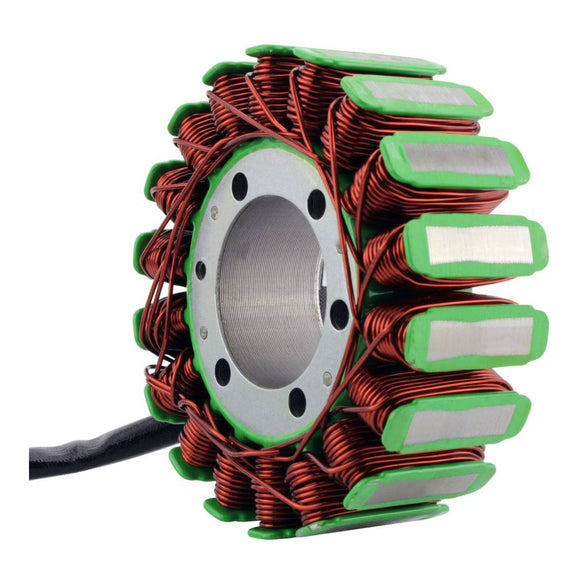

GENERATOR STATOR HONDA TRX520FA6 20-22 (RMS010-107181)

$419.99

SKU: RMS010107181 Barcode: RMS010-107181

Only 2 left!

Plug-and-play replacement stator from RM Stator.



Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 107 mm
  • Thickness: 31 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug #1: 335 mm
  • Length of wires grommet to plug #2: 855 mm
  • Length of pickup coil's wire to grommet: 85 mm



Other specifications:

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 18
  • Wire to wire resistance:
    • Alternator: Between each Yellow = 0.6 ohms +-20%
    • Pickup: Blue to Green = 235 ohms +-20%



Details:

    < li>Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation

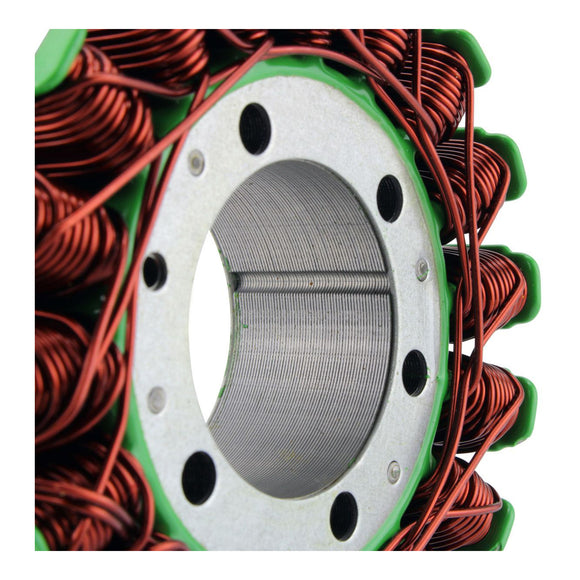

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

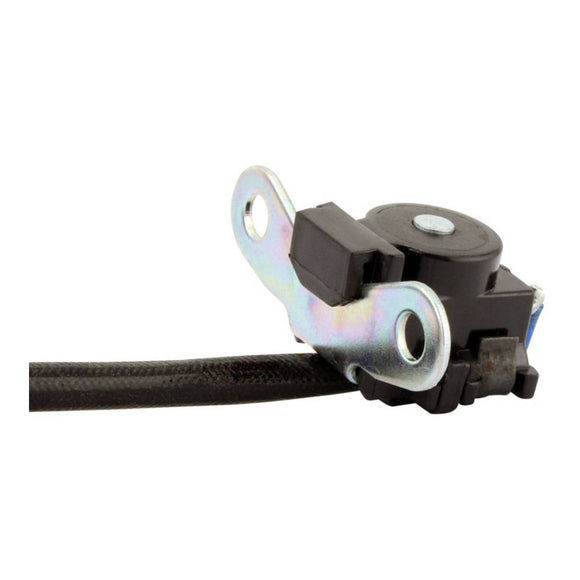

  • Pick up pulsar coil included

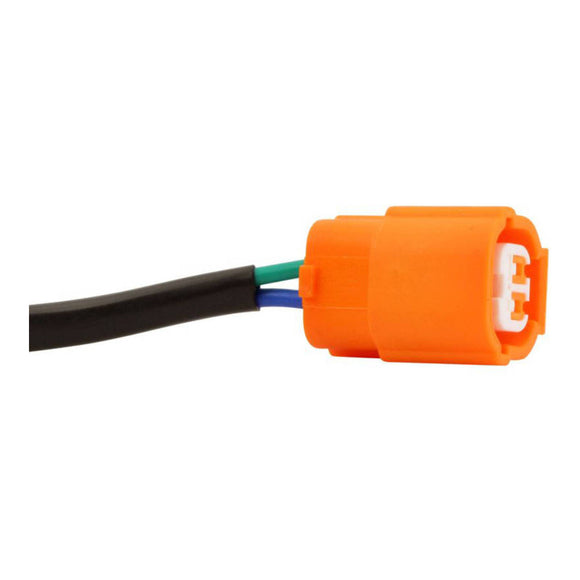

  • Connectors included

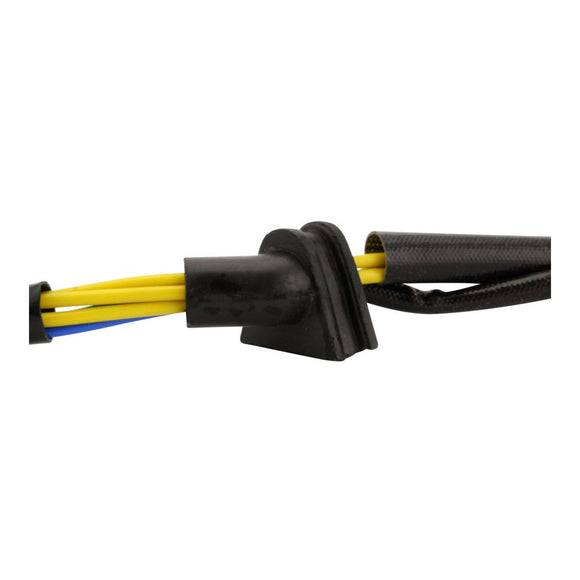

  • Rubber grommet included
  • All products shipped are tested
