- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation

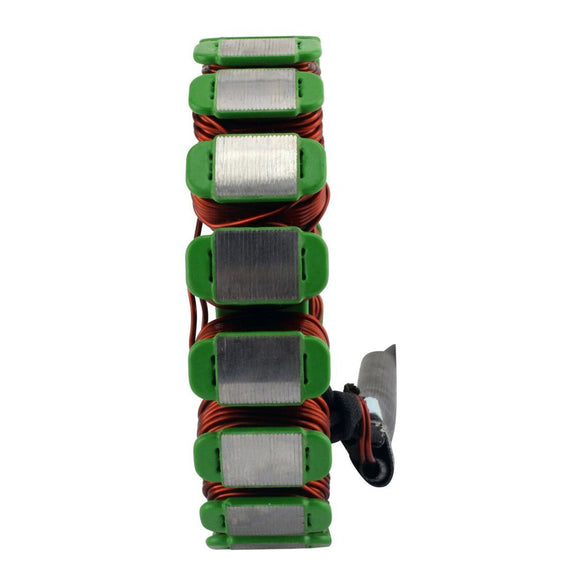

- Highest grade of lamination materials

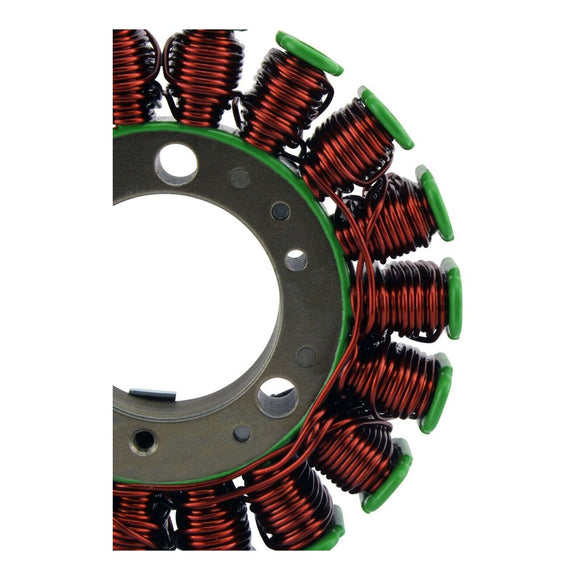

- Highest grade of copper winding, resistant to 200 degrees Celsius

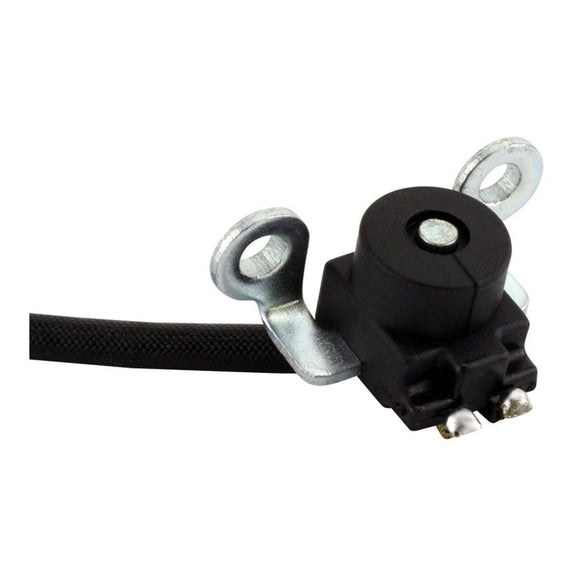

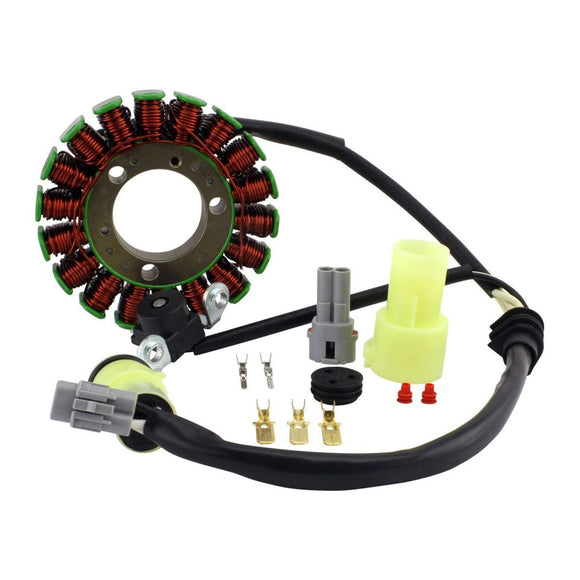

- Pick up pulsar coil included

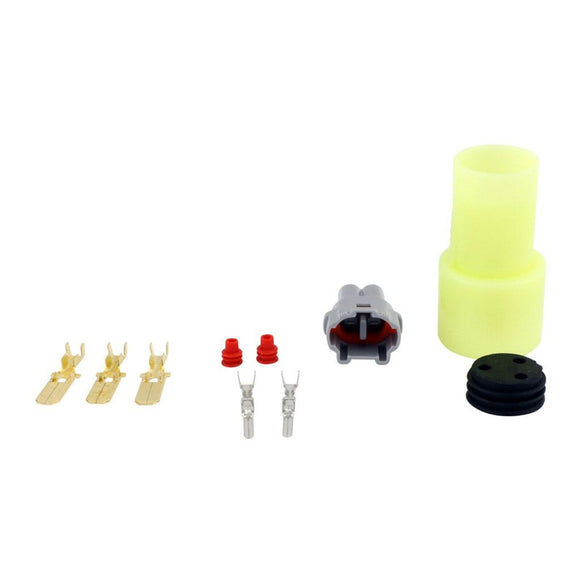

- Connectors included

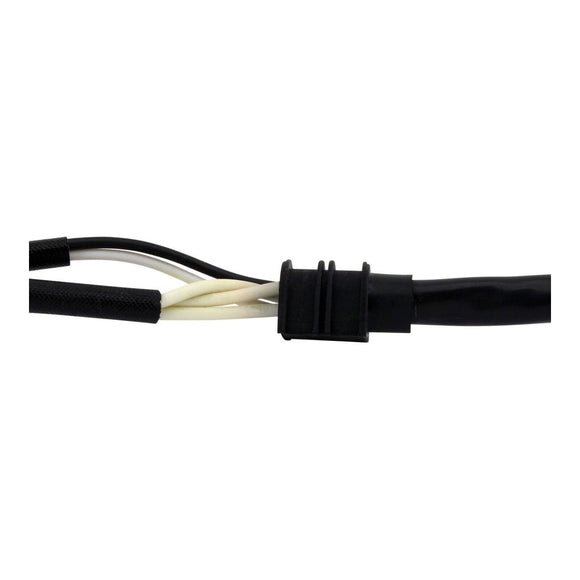

- Rubber grommet included
- All products shipped are tested

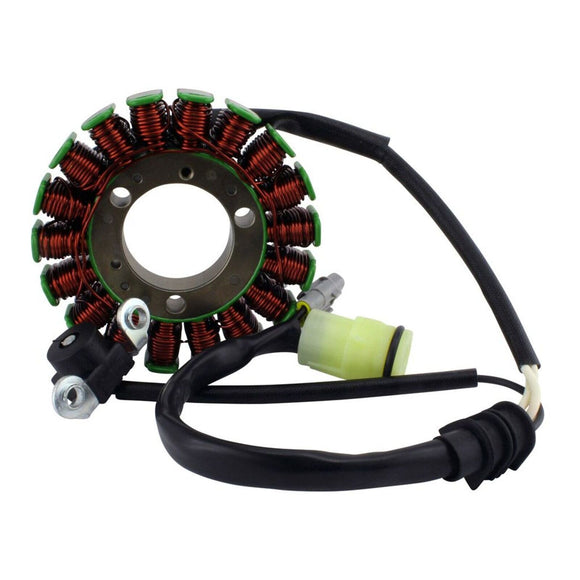

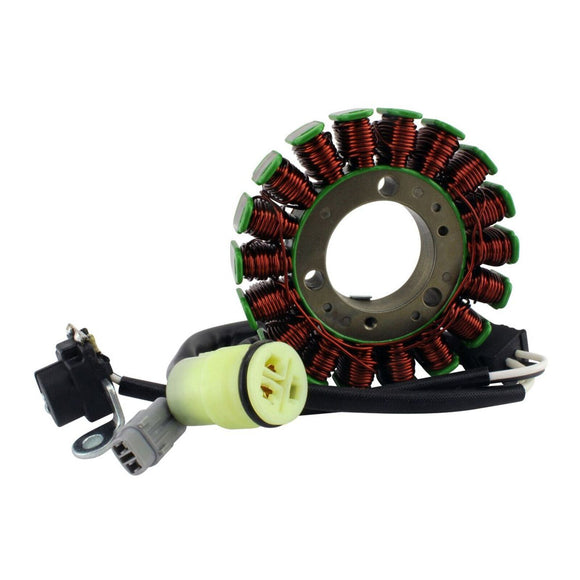

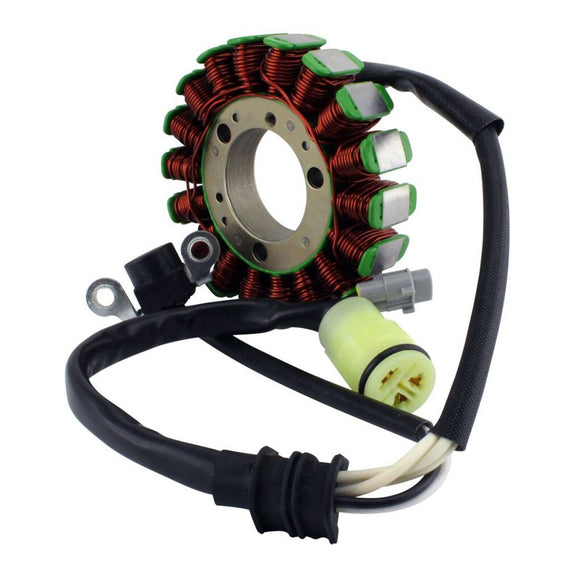

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

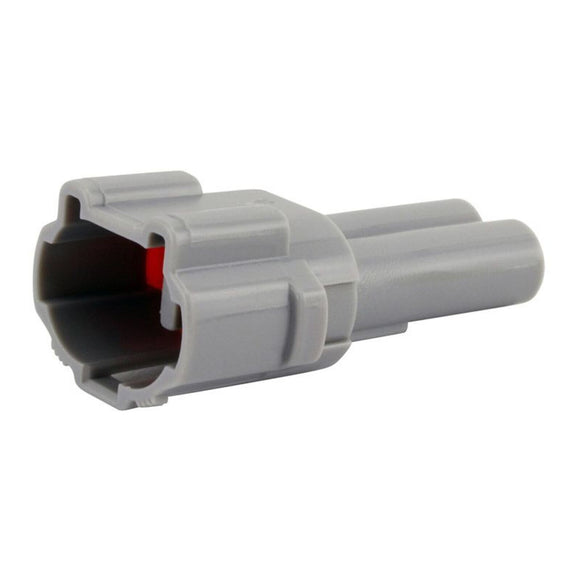

RM Stators has even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Dimensions:
- Interior diameter: 37 mm
- Exterior diameter: 97 mm
- Thickness: 14 mm
- Length of wires stator to grommet: 160 mm
- Length of wires grommet to plug: 180 mm
- Length of pickup coil's wire to grommet: 180 mm
Other specifications:
- Number of wires: 5

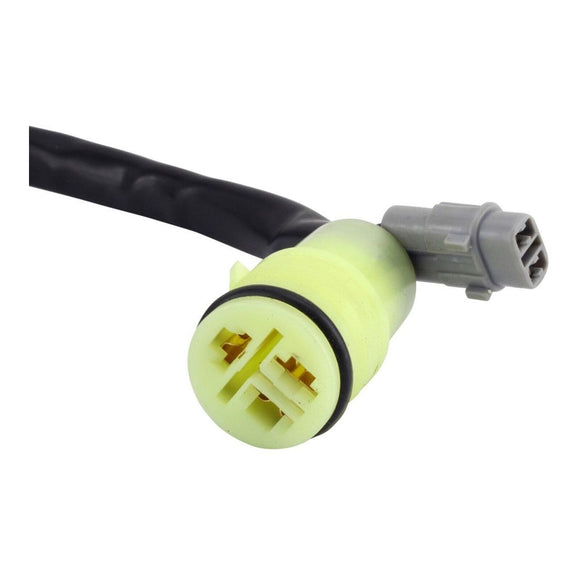

- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: White to White = 0.2 ohms +-20%
- Pickup: White to Black = 260 ohms +-20%
