STATOR + GASKET YAM YXR700 YXM700 YXC700 90-97 (RM01191G)

$419.99

SKU: RMS01191G Barcode: RM01191G

Available Now!

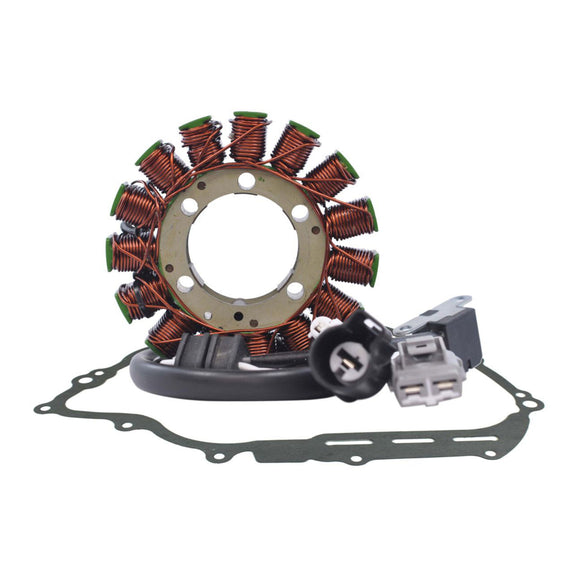

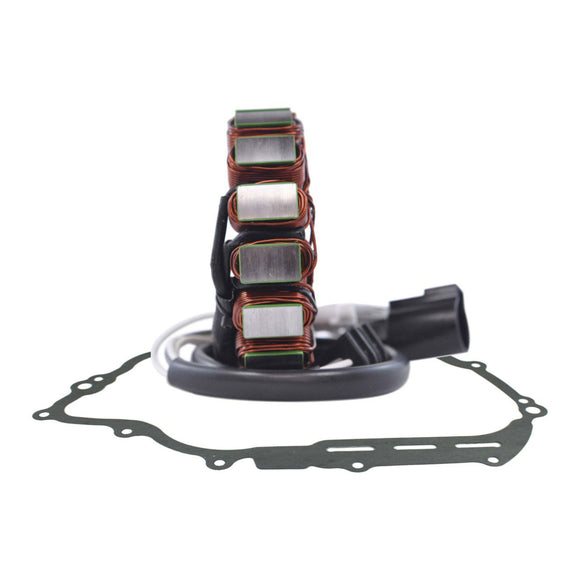

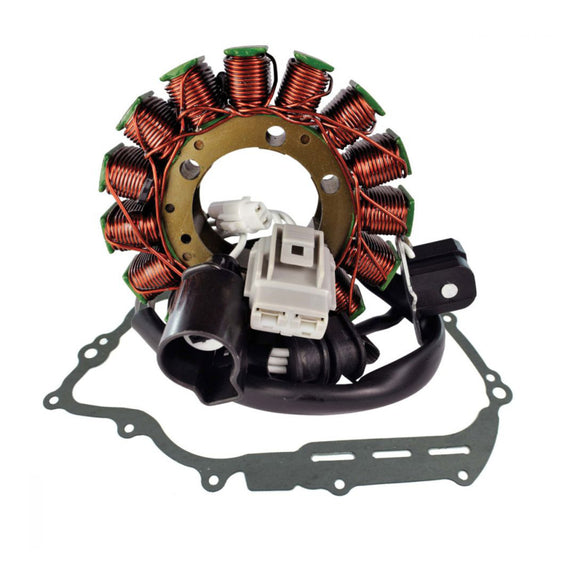

Brand new Kit Stator + Crankcase Cover Gasket

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation.
  • All products shipped are tested

Stator:

  • The highest grade of lamination materials
  • The highest grade of copper windings, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

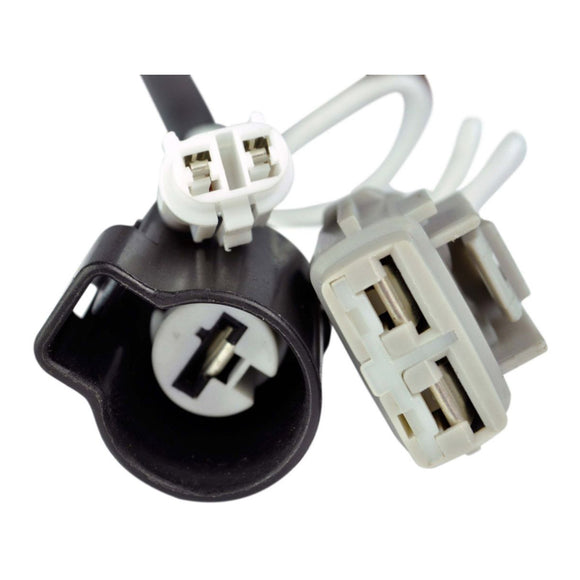

  • Connector included
  • Rubber grommet included

Specifications:

Dimensions Stator:

  • Interior diameter: 41 mm
  • Exterior diameter: 105 mm
  • Thickness: 19 mm
  • Length of wires stator to grommet: 65 mm
  • Length of wires grommet to plug: 400 mm
  • Length of pickup coil's wire to grommet: 65 mm

Other specifications:

  • Number of wires: 5
  • Number of plugs: 3
  • Number of pins: 5

Wire-to-wire resistance:

  • Alternator: White to White = 0.4 ohms +/-20%
  • Pickup: White to Grey = 500 ohms +/-20%
