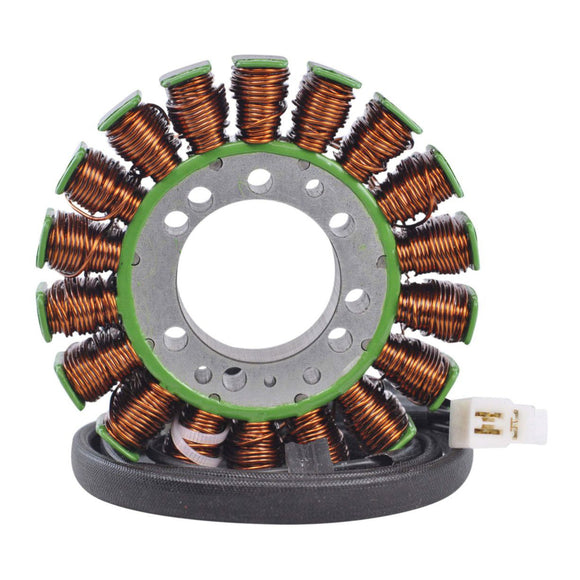

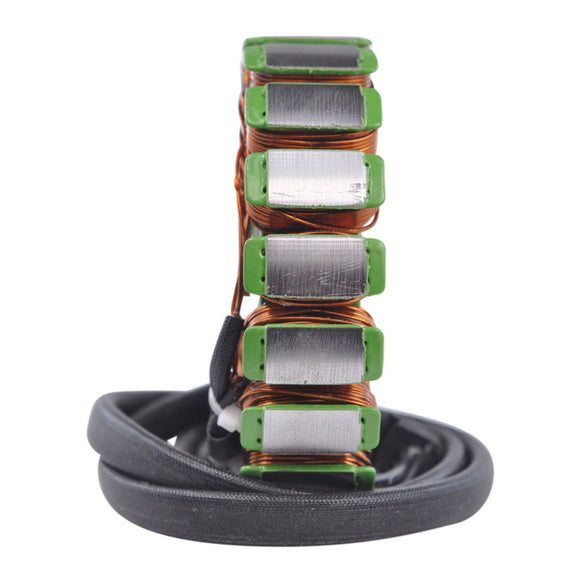

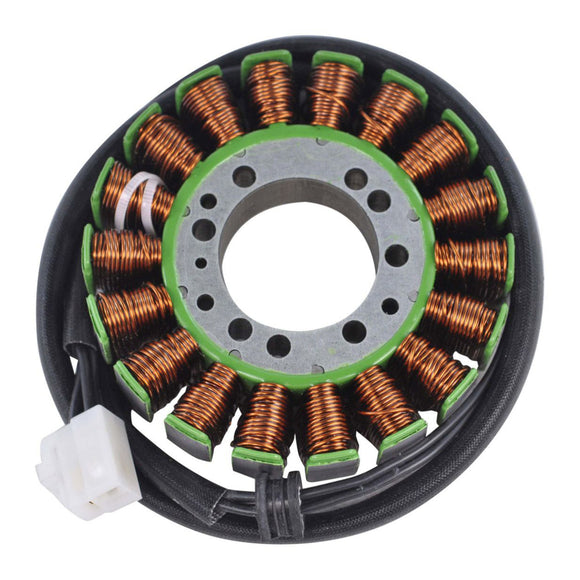

GENERATOR STATOR TRIUMPH DAYTONA 955i 02-06'

$309.99

SKU: RMS01388S Barcode: RM01388S

Only 3 left!

RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius

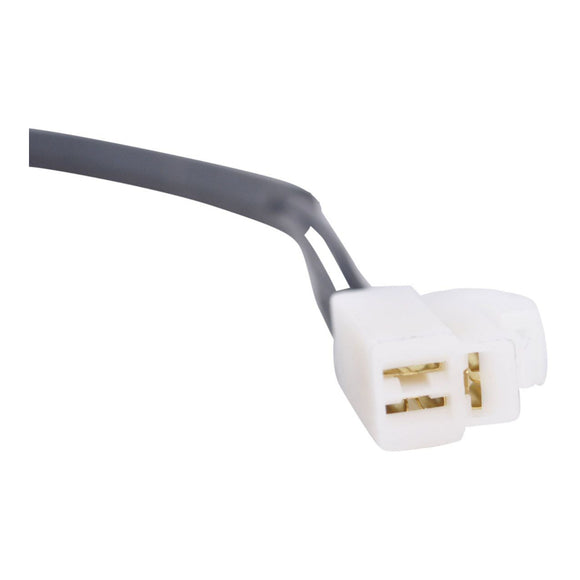

  • Connector included

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Dimensions:

  • Interior diameter: 42 mm
  • Exterior diameter: 115 mm
  • Width: 21 mm

Other specifications:

  • Number of wires: 3
  • Number of plugs: 1
  • Number of terminals: 3
  • Harness length Stator to grommet: 80 mm
  • Harness length grommet to plug: 650 mm

Wire to wire resistance:

  • Alternator: Between each Black = 0.5 ohms +/- 20%

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
  4. There are 2 possibles stators for Triumph Daytona 955i 2002-2006, our product RM01388S fits on serial number #179431 and below. The other possible Stator is RM01395.
