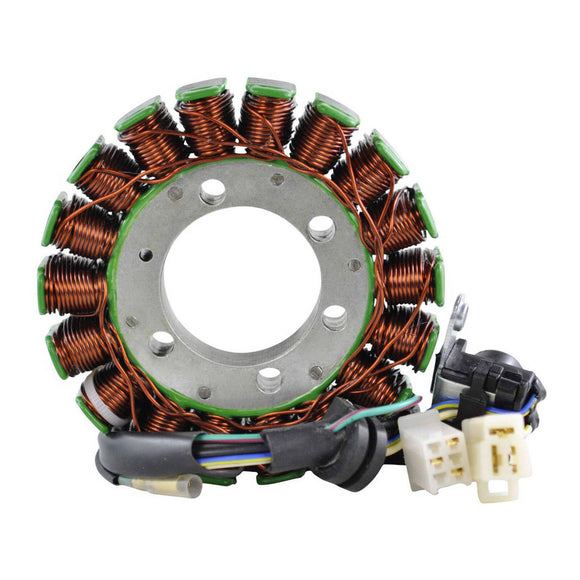

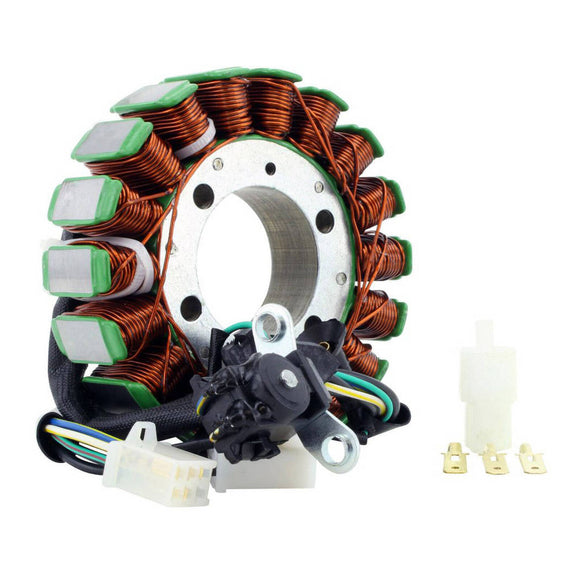

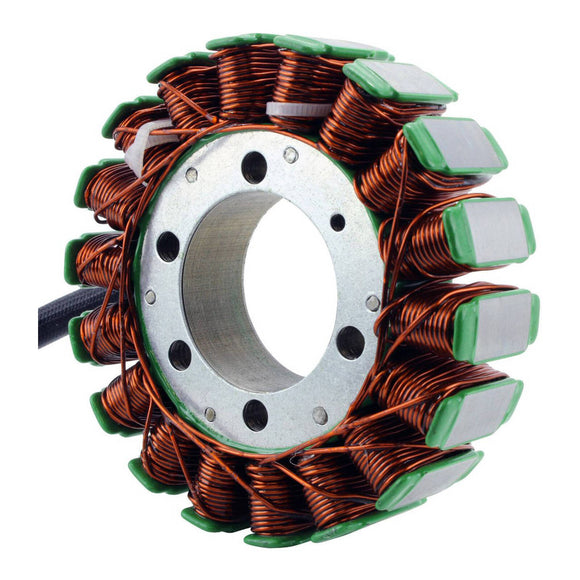

Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
Dimensions:
- Interior diameter: 42mm
- Exterior diameter: 107mm
- Thickness: 22mm
- Length of wires stator to grommet: 60mm
- Length of wires grommet to plug: 180mm
- Length of pickup coil's wire to grommet: 20mm
Other specifications:
- Number of wires: 6
- Number of plugs: 3
- Number of pins: 10
Wire to wire resistance:
- Alternator: Black to Black = 0.6 ohms +/-20%
- Pickup: White/Yellow to Blue/Yellow = 232 ohms +/-20%
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Please Note:
- All electrical components must be fitted by a qualified technician.
- Before fitting electrical components ensure the root cause of the original failure has been addressed.
- The absence of either of points 1 or 2 above, will void any warranty.
