VOLTAGE REGULATOR KTM ASSRTD FITMNTS

$149.99

SKU: RMS020107288 Barcode: RMS020-107288

Available Now!

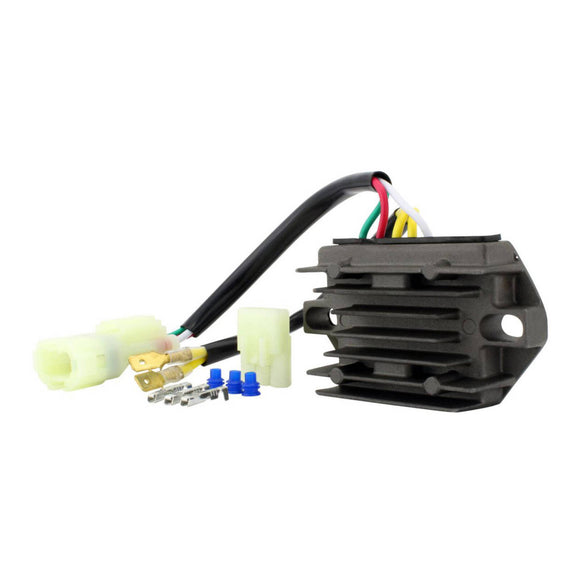

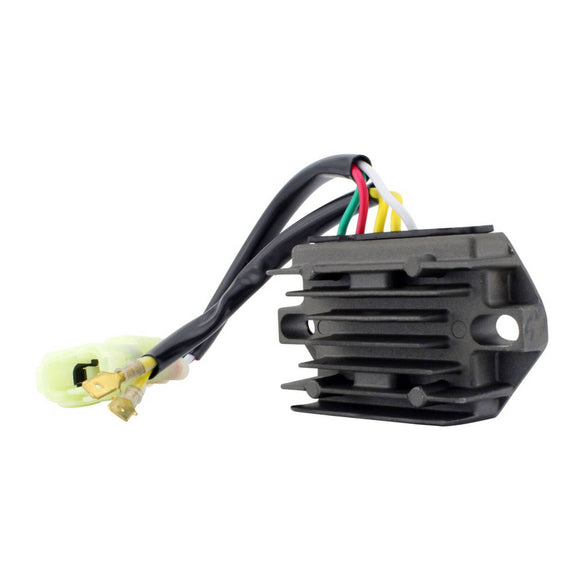

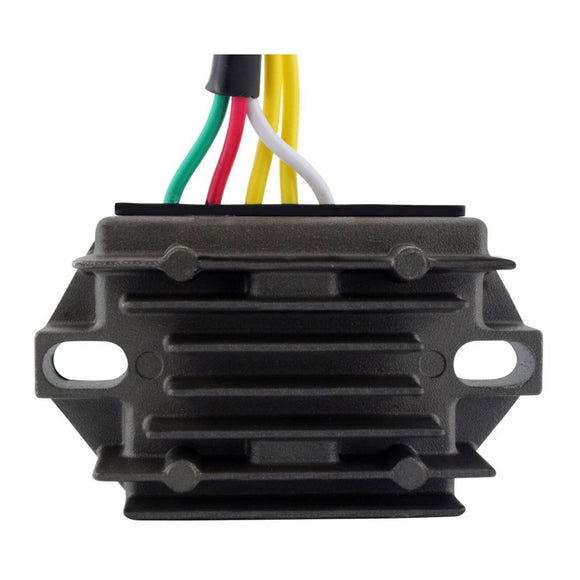

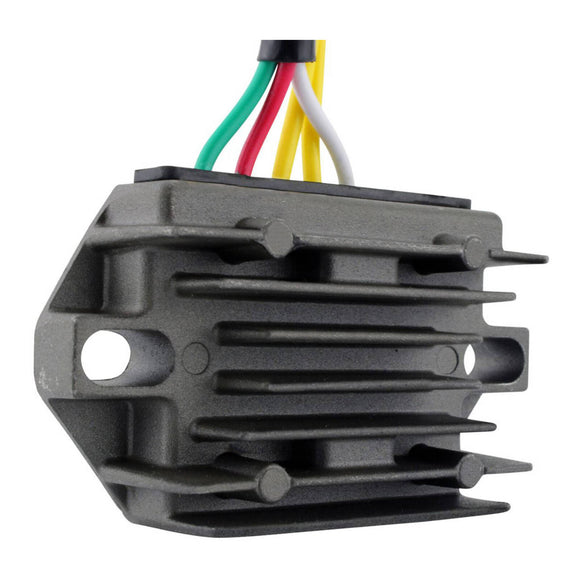

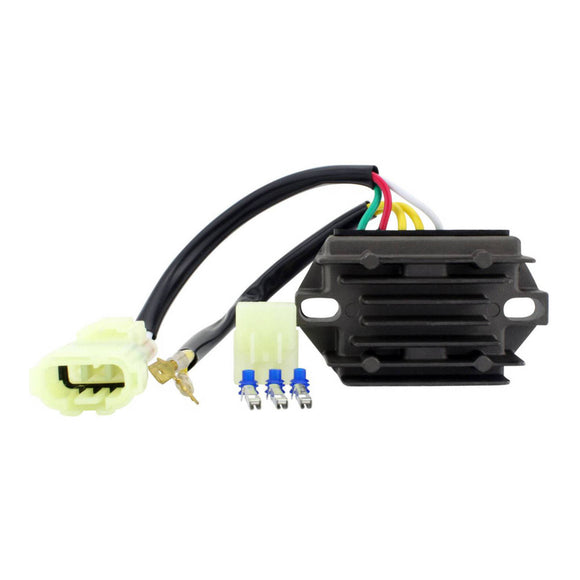

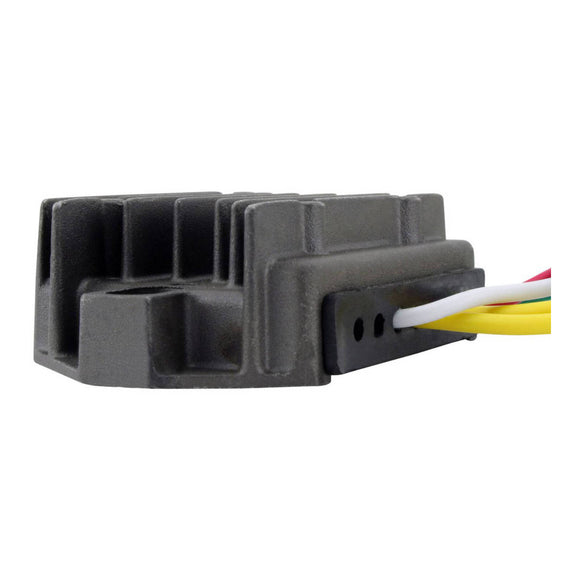

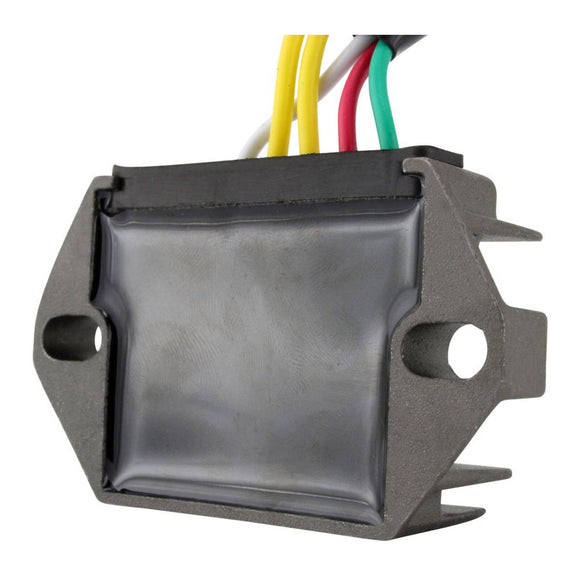

Brand new aftermarket Voltage Regulator Rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • No assembly required
  • Higher-grade of electric components
  • The quality exceeds the OEM equipment
  • All products shipped are tested

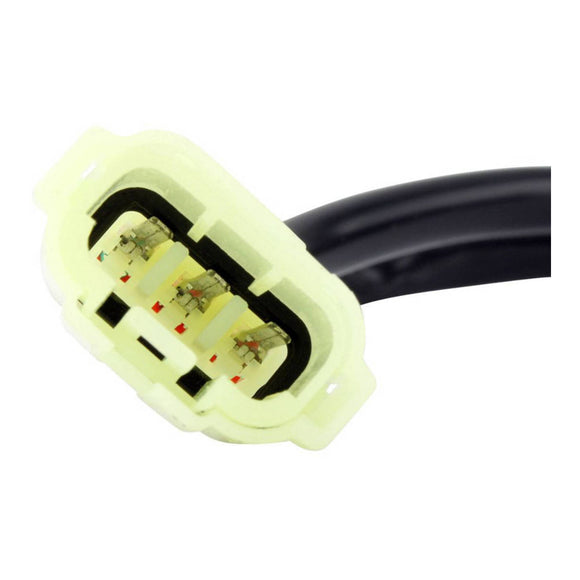

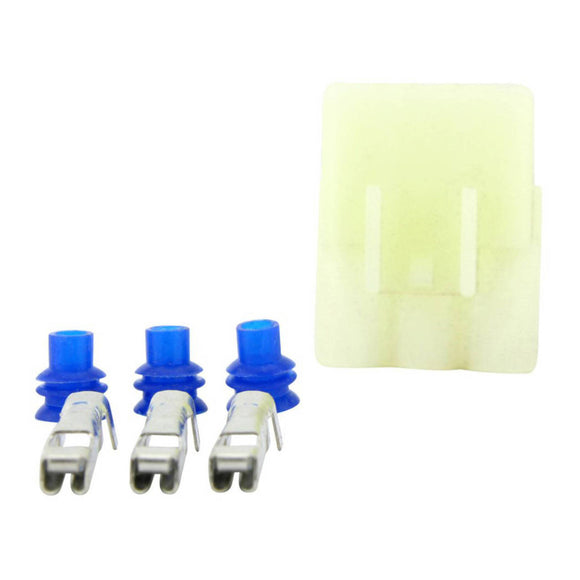

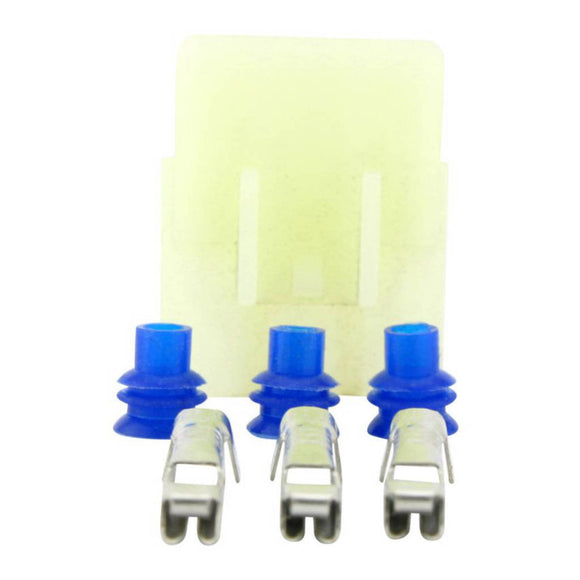

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.

Specifications:

Dimensions: p>

  • Width: 44 mm
  • Length: 76 mm
  • Height: 22 mm

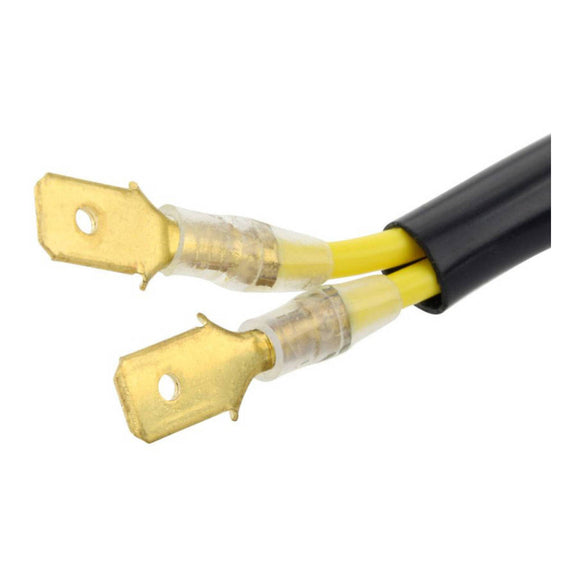

  • Wires length: 120 mm
  • Distance between fixation holes center to center: 60 mm

Other specifications:

  • Number of plugs: 3
  • Number of pins: 5
  • Number of wires: 5
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: < 15 V
  • Operation Temperature: -20°C to 85°C
