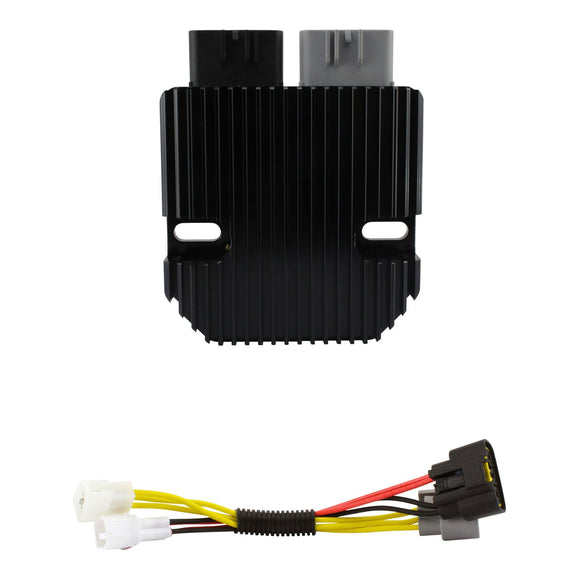

Join the revolt against bland voltage regulator performance!
Refuse to compromise to current 30-year-old technology. With its redesigned rectifier technology, REVOLT excels where every other fails: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications.
Features:
- RUNS 50% COOLER THAN OEM
Two years of R and D and careful choice of top-graded performance components dramatically reduce failure rate by running substantially cooler than the best OEM and competitors’ products. - SOLVES THE MAJOR CAUSE OF FAILURE
REVOLT is the only voltage regulator rectifier on the market with a redesigned rectifier circuit to considerably improve reliability. - DISSIPATE HEAT 45% BETTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminium billet for optimal heat transfer from internal components to external fresh air. - PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. - LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator again.
Dimensions:
- Width: 103 mm
- Length: 102 mm
- Height: 26 mm
- Fixation Holes Center to Center: 78 mm
Electrical Specifications:
- Number of Plugs: 2
- Number of Pins: 5
- Number of Wires: 0
- Minimum Charging Voltage: 14.5 V ± 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: < 15 V
- Operation Temperature: -20°C to 85°C

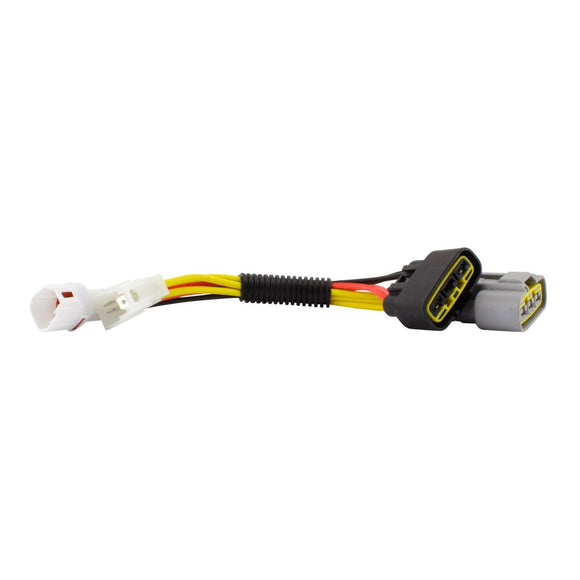

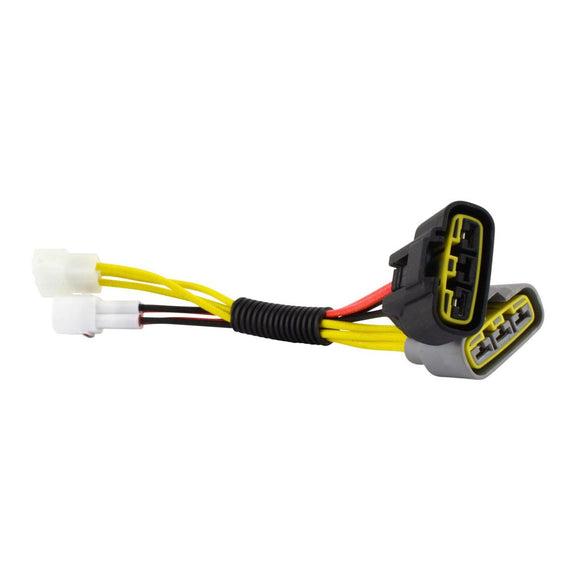

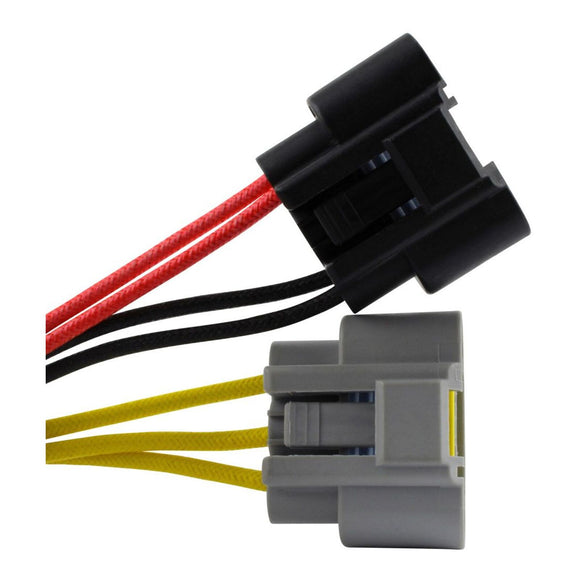

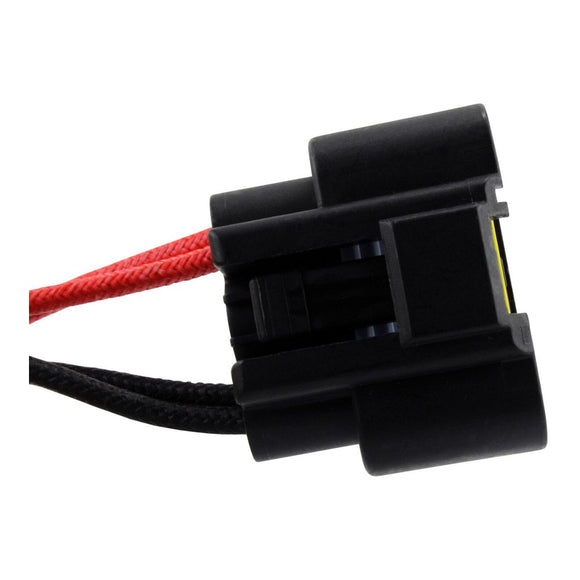

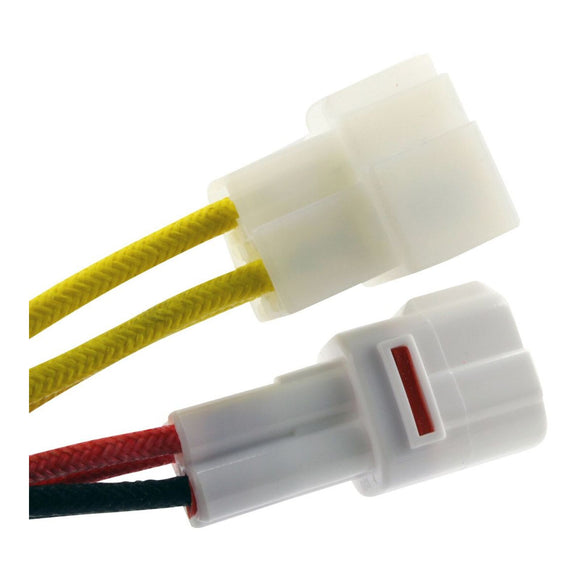

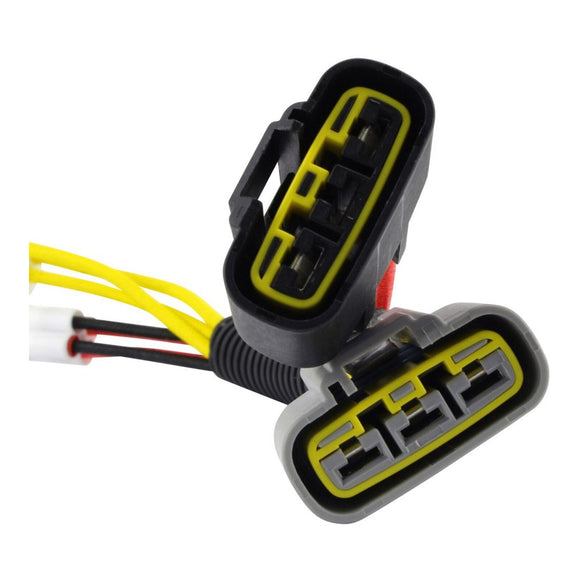

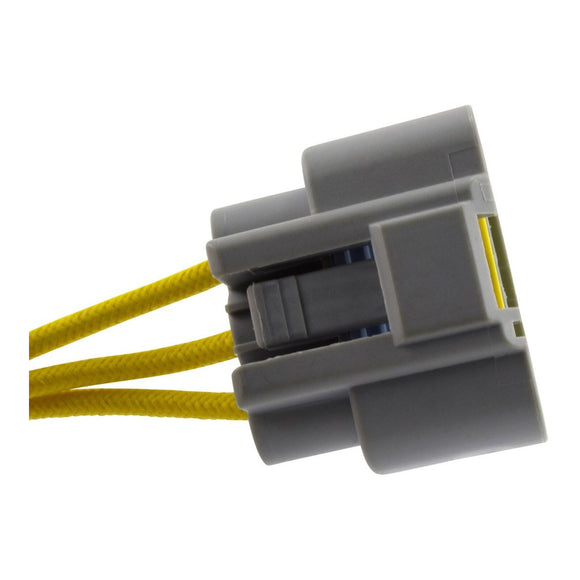

Harness:
- Wire Length: 150 mm
- Number of Yellow Wires: 3
- Number of Red Wires: 1
- Number of Green Wires: 1
- Number of Plugs: 3
