Re-install your original connector and grommet. Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
Features:
- Higher grade of electric components.
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- All shipped products are tested.

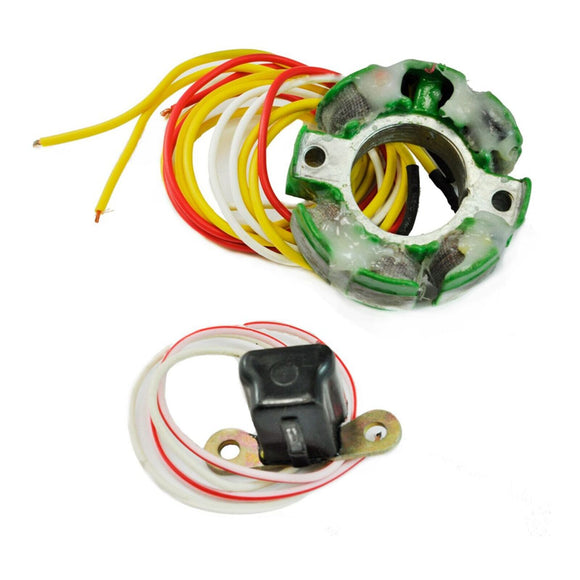

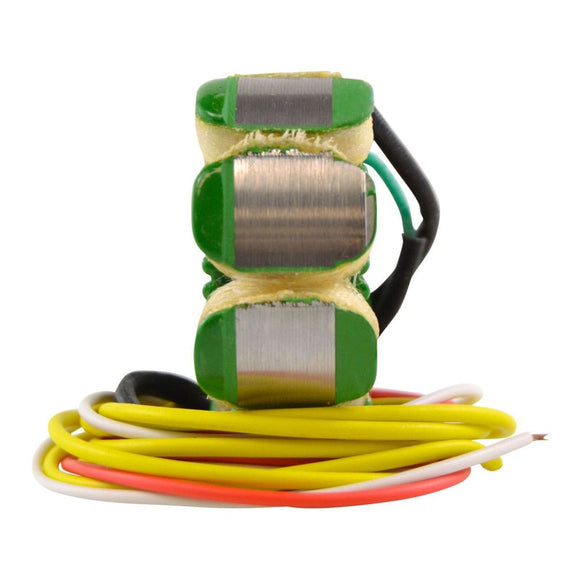

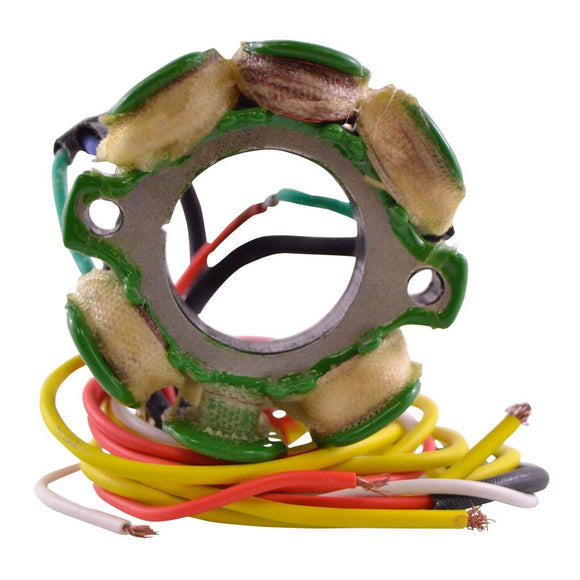

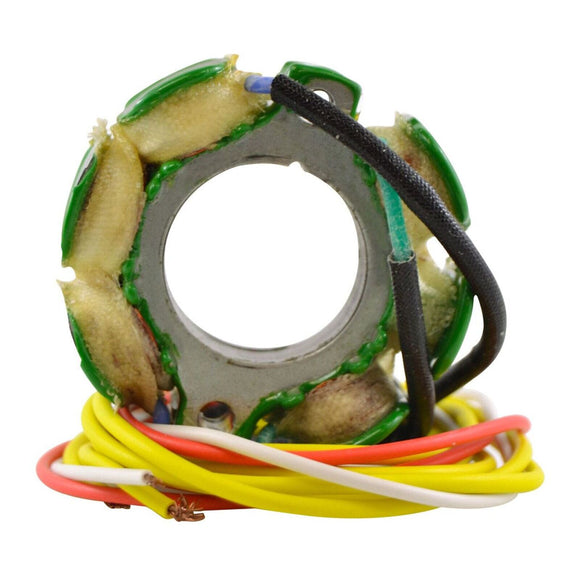

Dimensions - Stator:
- Interior diameter: 28mm
- Exterior diameter: 57mm
- Thickness: 15mm
- Length of wires (stator to terminals): 600mm
Other Specifications:

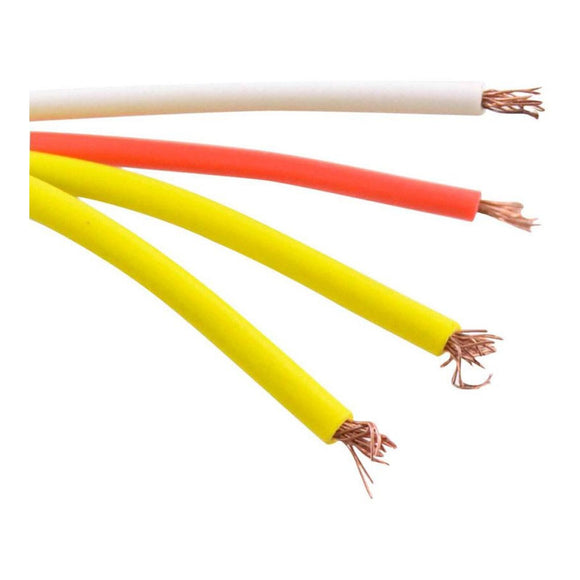

- Number of wires: 4
- Number of plugs: 0
- Number of terminals: 4
Wire-to-Wire Resistance:
- Source 1: Red to White = 28 ohms ± 20%
- Source 2: Yellow to Yellow = 0.4 ohms ± 20%

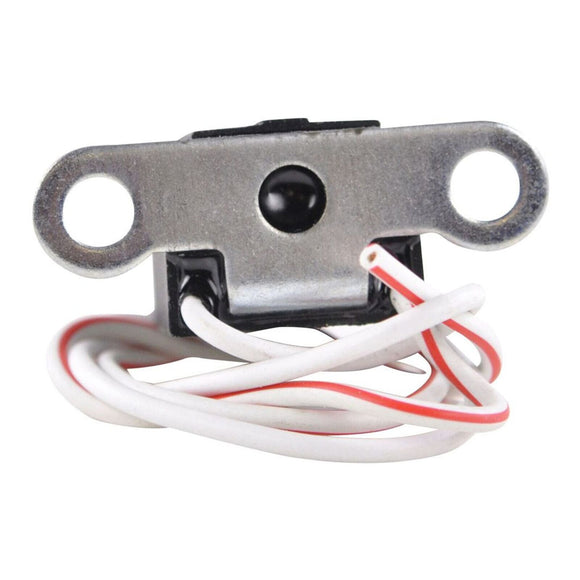

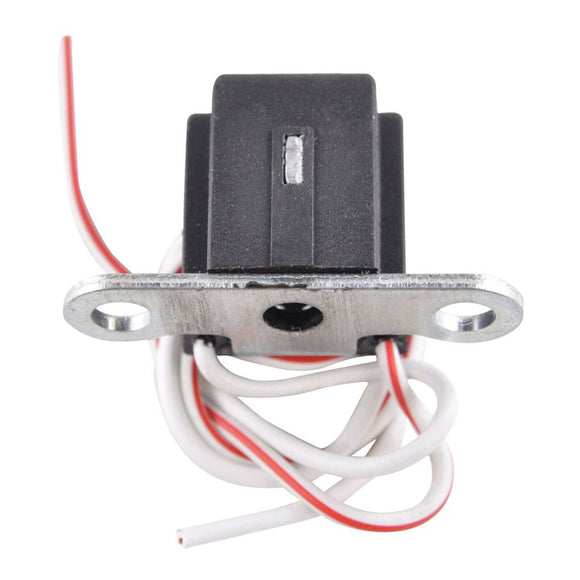

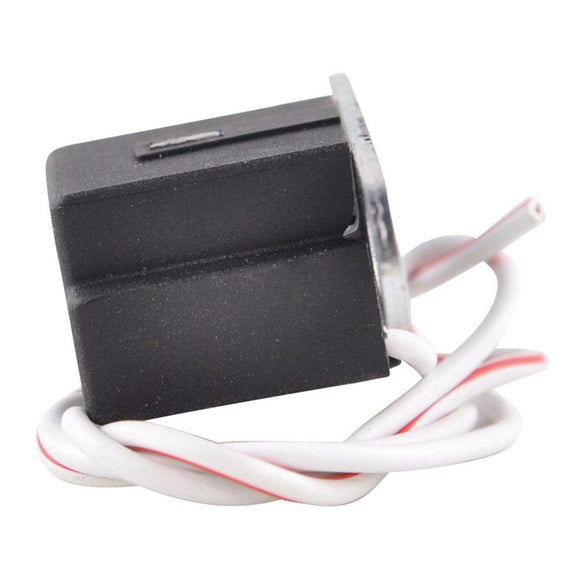

Dimensions - Pickup Pulsar Coil:
- Height: 25mm
- Length: 22mm
- Width: 18mm
- Bracket (centre to centre): 35mm
- Wires length: 90mm
Other Specifications:
- Number of wires: 2
- Number of pins: 2

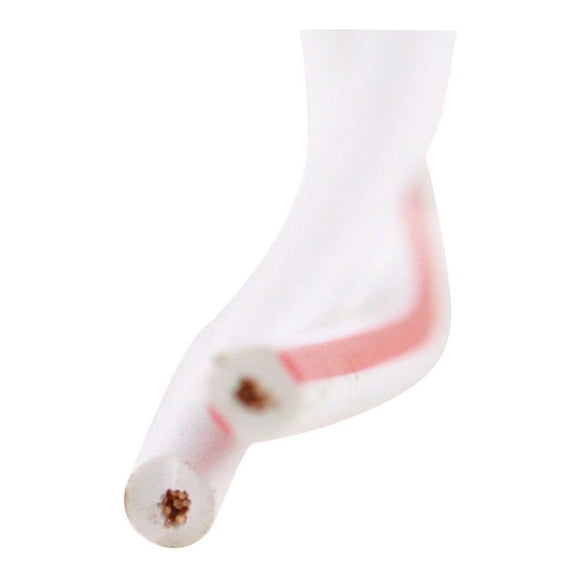

Wire-to-Wire Resistance:
- Pink/Red to White: 100 ohms ± 20%
