40W CONV KIT AC TO DC HON CRF250X 2004-2017 (RMS900-104238)

$339.99

SKU: RMS900104238 Barcode: RMS900-104238

Sold Out

Brand new aftermarket AC to DC 40W Stator + Voltage regulator rectifier

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • All products shipped are tested

Because of the lightweight LED lights, night time illumination has become much easier. However, most motorcycle electrical systems need more power to make them work. This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories.

Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12 V DC output line only when the motor is running. Do you often forget to turn off your lights? No more worries! This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically!

Stator :

  • Compatible with lighting systems of equal or less power
  • Replace the OEM and increases power output significantly.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included

Voltage regulator rectifier :

  • No assembly required
  • Higher grade of electric components.
  • The quality exceeds the OEM equipment

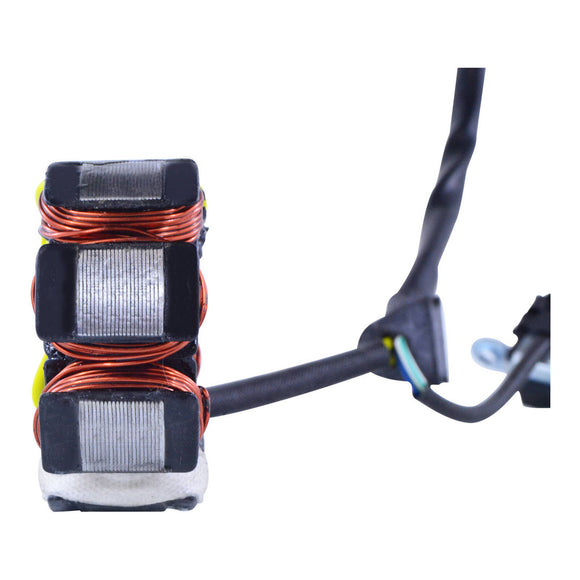

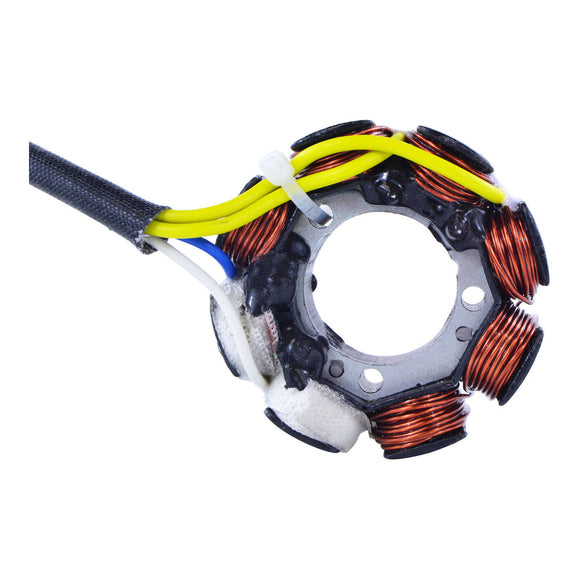

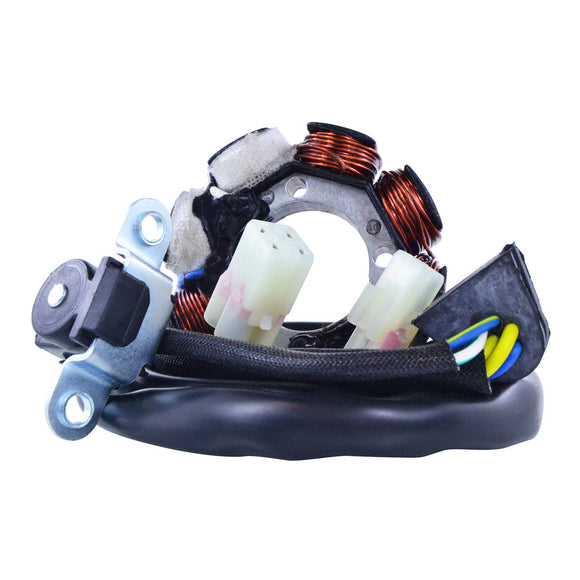

Stator

Dimensions:

    diameter: 28 mm
  • Exterior diameter: 61 mm
  • Thickness: 14 mm
  • Length of wires stator to grommet: 100 mm
  • Length of wires grommet to plug: 660 mm
  • Length of pickup coil's wire to grommet: 65 mm

Other specifications:

  • Number of wires: 6
  • Number of plugs: 4
  • Number of pins: 6

Wire to wire resistance:

  • Alternator: Yellow between each Yellow = 0.5 ohms +-20%
  • Pickup: Blue/yellow to Green/White = 267 ohms +-20%
  • Source: Blue to White = 24 ohms +-20%

Voltage Regulator Rectifier

Dimensions:

  • Width: 44 mm
  • Length: 79 mm
  • Height: 22 mm
  • Wires length: 250 mm
  • Fixation holes center to center: 62 mm

Other specifications:

  • Number of wires: 5
  • Minimum Charging Voltage: 14.5 V +- 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: 15 V
  • Operation Temperature: -20° to 85°

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
