Kit Stator + RMSTATOR Red Machined Aluminum Mosfet Regulator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

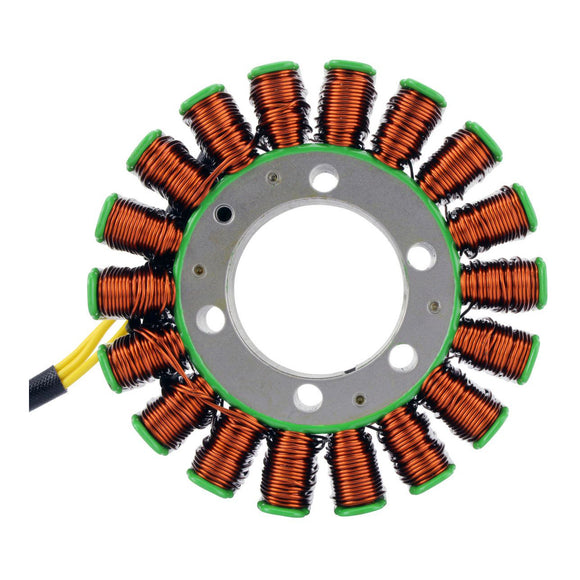

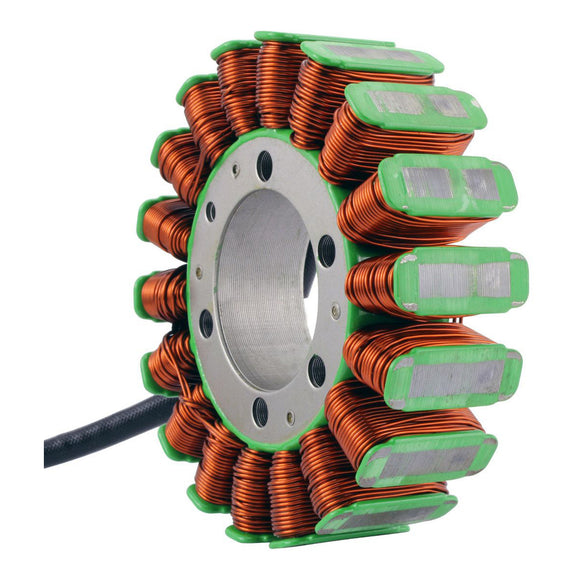

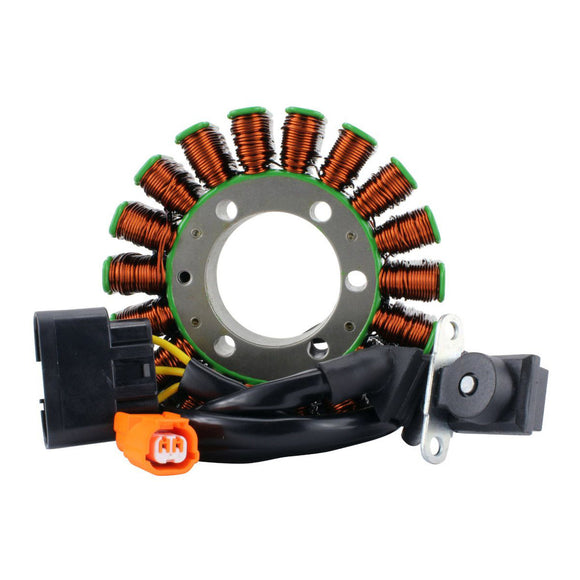

Brand new aftermarket Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius

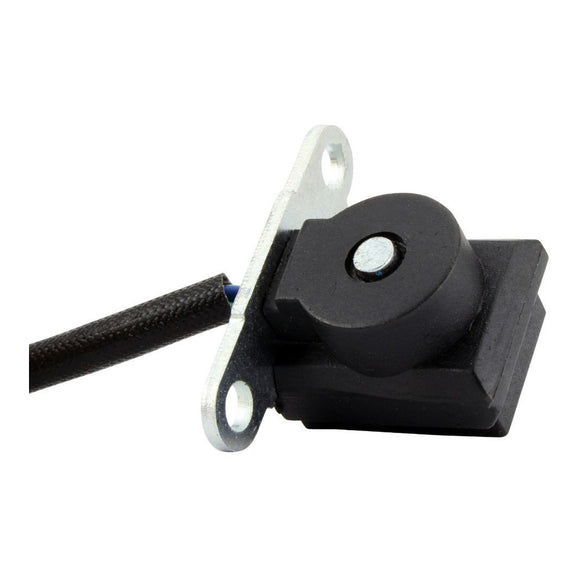

- Pick up pulsar coil included

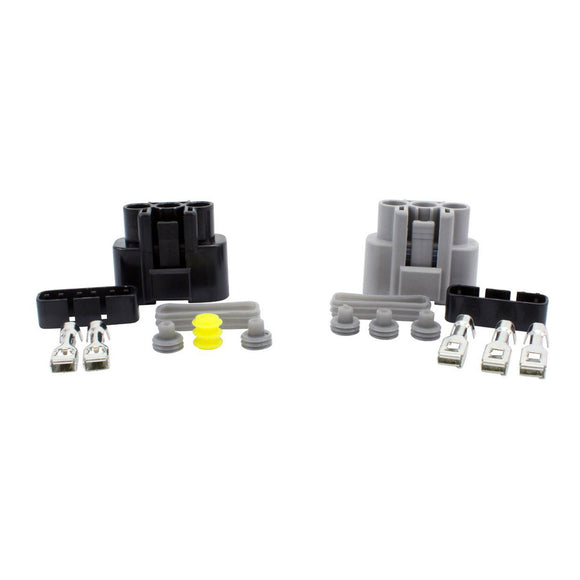

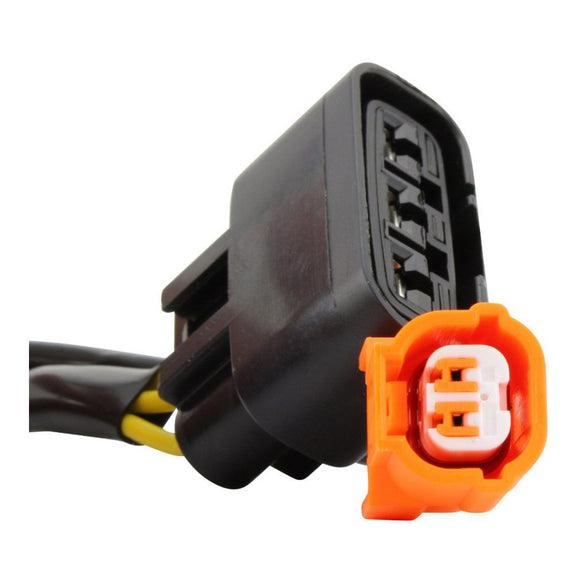

- Connectors included

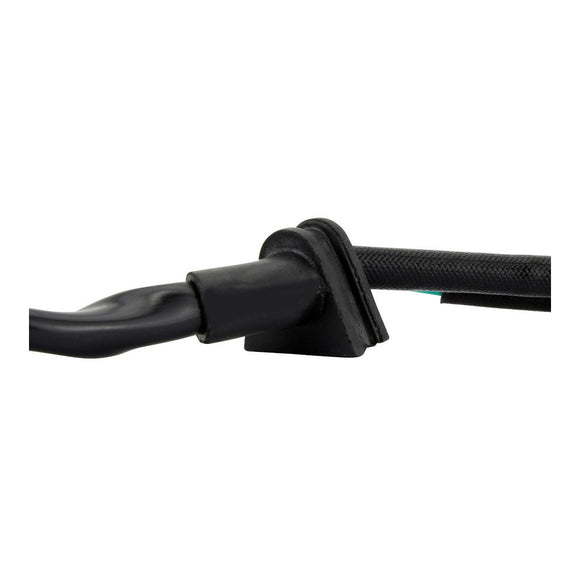

- Rubber grommet included

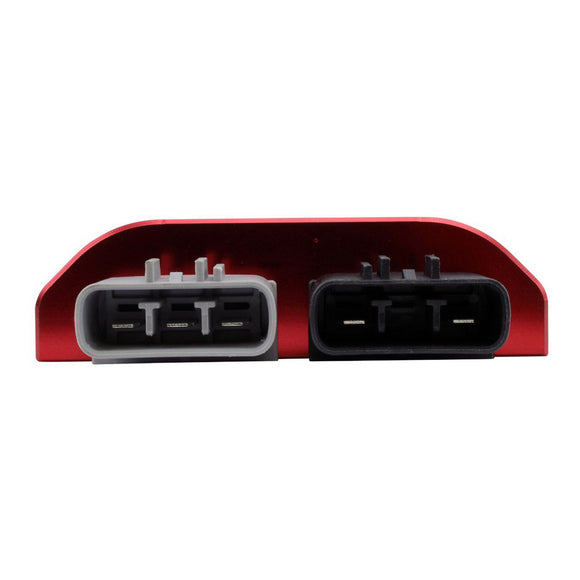

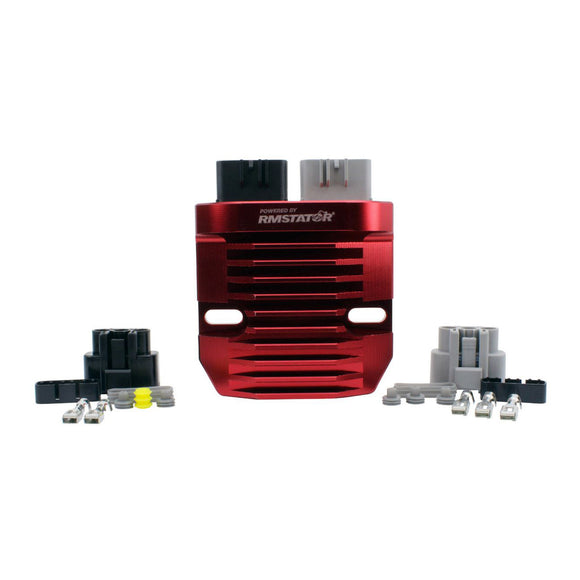

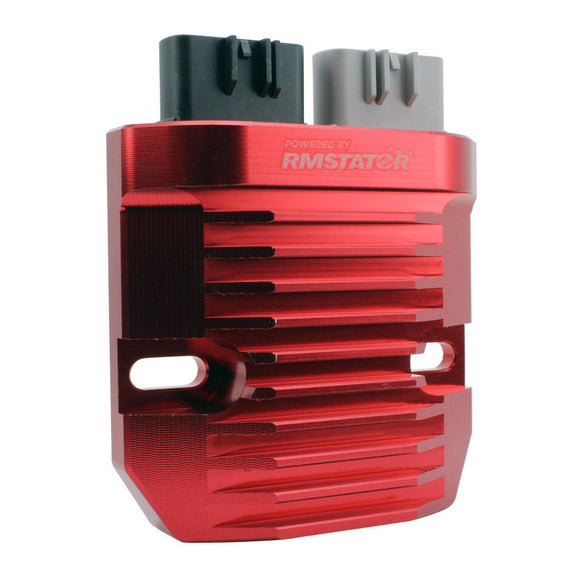

Brand new RMSTATOR Red Machined Aluminum Mosfet Regulator
Our new red machined aluminium Mosfet voltage regulator is a great upgrade for heat dissipation in any powersports charging system. After 10 minutes of use, our billet aluminium heatsink runs cooler by 33% than standard cast regulator housings. Our new red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.
Specifications:
-
Stator: -
Dimensions:
- I nterior diameter: 42 mm
- Exterior diameter: 107 mm
- Thickness: 24 mm
- Length of wires stator to grommet: 110 mm
- Length of wires grommet to plug: 370 mm & 835 mm
- Length of pickup coil's wire to grommet: 80 mm
-
Other Specifications:
- Number of wires: 5
- Number of plugs: 2
- Number of pins: 5
- Number of poles: 18
- Wire to wire resistance:
- Alternator: Between each Yellow = 0.6 ohms ±20%
- Alternator: to ground = O.L (open loop)
- Pickup: Blue/Yellow to Green = 116 ohms ±20%
-
Dimensions:
-

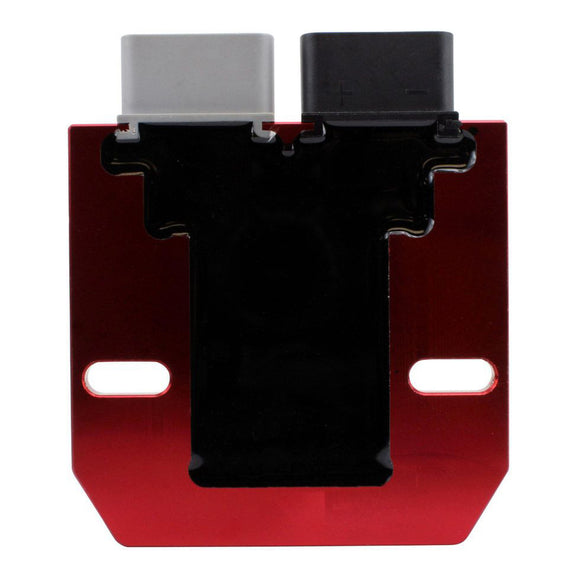

RMSTATOR Red Machined Aluminum Mosfet Regulator: -
Dimensions:
- Width: 103 mm
- Length: 103 mm
- Height: 28 mm
- Fixation holes center to center: 80 mm
-
Other Specifications:
- Number of plugs: 2
- Number of pins: 5
- Number of wires: 0
- Minimum Charging Voltage: 14.5 V ± 0.5 V
- Maximum Charging Current: 50 A / 500 W
- Open Circuit Voltage: 15 V
- Operation Temperature: -20°C to 85°C
-
